品牌名称：
Vlier
商品型号：
产地：
单位：

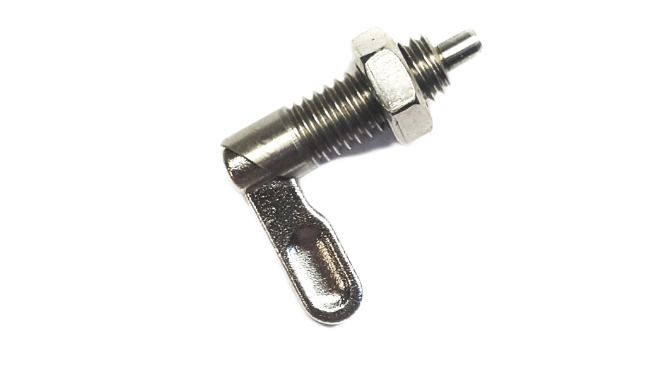

VLIER定位锁带凸轮作用&锁紧螺母
材质
- 300系列不锈钢
表面处理
- 不锈钢自然色
不锈钢定位锁/凸轮作用&锁紧螺母

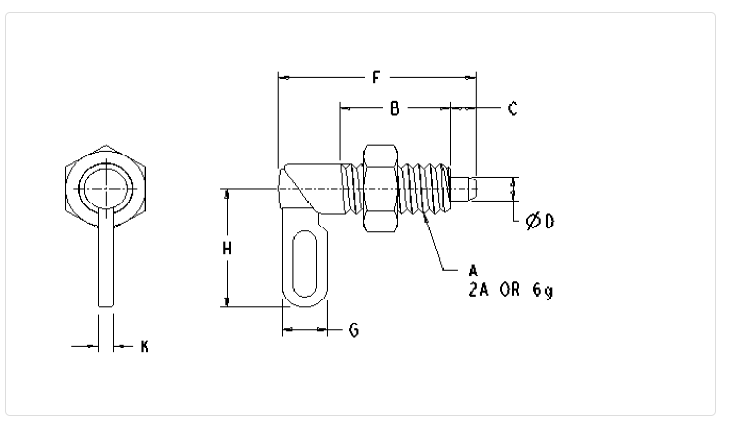

| 产品型号 | 端面压力（磅） | 螺纹 | 英寸 | 英寸 | 英寸 | 英寸 | 英寸 | 英寸 | 英寸 | |
|---|---|---|---|---|---|---|---|---|---|---|
| 初始弹力 | 末端弹力 | A | B±.020 | C±.010 | D-.0008 | FREF | GREF | HREF | KREF | |
| SKCT375A1 | 1.8 | 3.1 | 3/8-16 | 0.787 | 0.236 | 0.157 | 1.50 | 0.354 | 0.98 | 0.12 |
| SKCT375A2 | 1.8 | 3.1 | 3/8-16 | 0.787 | 0.236 | 0.197 | 1.50 | 0.354 | 0.98 | 0.12 |
| SKCT375A3 | 1.8 | 3.1 | 3/8-16 | 0.787 | 0.236 | 0.236 | 1.50 | 0.354 | 0.98 | 0.12 |
| SKCT375B1 | 1.8 | 3.1 | 3/8-24 | 0.787 | 0.236 | 0.157 | 1.50 | 0.354 | 0.98 | 0.12 |
| SKCT375B2 | 1.8 | 3.1 | 3/8-24 | 0.787 | 0.236 | 0.197 | 1.50 | 0.354 | 0.98 | 0.12 |
| SKCT375B3 | 1.8 | 3.1 | 3/8-24 | 0.787 | 0.236 | 0.236 | 1.50 | 0.354 | 0.98 | 0.12 |
| SKCT500A1 | 1.8 | 3.37 | 1/2-13 | 0.984 | 0.315 | 0.197 | 1.84 | 0.425 | 1.18 | 0.14 |
| SKCT500A2 | 1.8 | 3.37 | 1/2-13 | 0.984 | 0.315 | 0.236 | 1.84 | 0.425 | 1.18 | 0.14 |
| SKCT500A3 | 1.8 | 3.37 | 1/2-13 | 0.984 | 0.315 | 0.315 | 1.84 | 0.425 | 1.18 | 0.14 |
| SKCT500B1 | 1.8 | 3.37 | 1/2-20 | 0.984 | 0.315 | 0.197 | 1.84 | 0.425 | 1.18 | 0.14 |
| SKCT500B2 | 1.8 | 3.37 | 1/2-20 | 0.984 | 0.315 | 0.236 | 1.84 | 0.425 | 1.18 | 0.14 |
| SKCT500B3 | 1.8 | 3.37 | 1/2-20 | 0.984 | 0.315 | 0.315 | 1.84 | 0.425 | 1.18 | 0.14 |
| SKCT625A1 | 3.37 | 7.87 | 5/8-11 | 1.260 | 0.394 | 0.236 | 2.378 | 0.567 | 1.58 | 0.19 |
| SKCT625A2 | 3.37 | 7.87 | 5/8-11 | 1.260 | 0.394 | 0.315 | 2.378 | 0.567 | 1.58 | 0.19 |
| SKCT625A3 | 3.37 | 7.87 | 5/8-11 | 1.260 | 0.394 | 0.394 | 2.378 | 0.567 | 1.58 | 0.19 |
| SKCT625B1 | 3.37 | 7.87 | 5/8-18 | 1.260 | 0.394 | 0.236 | 2.378 | 0.567 | 1.58 | 0.19 |
| SKCT625B2 | 3.37 | 7.87 | 5/8-18 | 1.260 | 0.394 | 0.315 | 2.378 | 0.567 | 1.58 | 0.19 |
| SKCT625B3 | 3.37 | 7.87 | 5/8-18 | 1.260 | 0.394 | 0.394 | 2.378 | 0.567 | 1.58 | 0.19 |
| SKCT750A1 | 4.5 | 13.5 | 3/4-10 | 1.378 | 0.472 | 0.315 | 2.756 | 0.709 | 1.969 | 0.24 |
| SKCT750A2 | 4.5 | 13.5 | 3/4-10 | 1.378 | 0.472 | 0.394 | 2.756 | 0.709 | 1.969 | 0.24 |
| SKCT750A3 | 4.5 | 13.5 | 3/4-10 | 1.378 | 0.472 | 0.472 | 2.756 | 0.709 | 1.969 | 0.24 |
| SKCT750B1 | 4.5 | 13.5 | 3/4-16 | 1.378 | 0.472 | 0.315 | 2.756 | 0.709 | 1.969 | 0.24 |
| SKCT750B2 | 4.5 | 13.5 | 3/4-16 | 1.378 | 0.472 | 0.394 | 2.756 | 0.709 | 1.969 | 0.24 |
| SKCT750B3 | 4.5 | 13.5 | 3/4-16 | 1.378 | 0.472 | 0.472 | 2.756 | 0.709 | 1.969 | 0.24 |
| 产品型号 | 端面压力（牛） | 螺纹 | 毫米 | 毫米 | 毫米 | 毫米 | 毫米 | 毫米 | 毫米 | |
|---|---|---|---|---|---|---|---|---|---|---|
| 初始弹力 | 末端弹力 | A | B±0.51 | C±0.25 | D-.02 | FREF | GREF | HREF | KREF | |
| SKCTM10A1 | 8.0 | 14.0 | M10 x 1.5 | 20.0 | 6.0 | 4 | 38.0 | 9.0 | 25.0 | 3.0 |
| SKCTM10A2 | 8.0 | 14.0 | M10 x 1.5 | 20.0 | 6.0 | 5 | 38.0 | 9.0 | 25.0 | 3.0 |
| SKCTM10A3 | 8.0 | 14.0 | M10 x 1.5 | 20.0 | 6.0 | 6 | 38.0 | 9.0 | 25.0 | 3.0 |
| SKCTM10B1 | 8.0 | 14.0 | M10 x 1.0 | 20.0 | 6.0 | 4 | 38.0 | 9.0 | 25.0 | 3.0 |
| SKCTM10B2 | 8.0 | 14.0 | M10 x 1.0 | 20.0 | 6.0 | 5 | 38.0 | 9.0 | 25.0 | 3.0 |
| SKCTM10B3 | 8.0 | 14.0 | M10 x 1.0 | 20.0 | 6.0 | 6 | 38.0 | 9.0 | 25.0 | 3.0 |
| SKCTM12A1 | 8.0 | 15.0 | M12 x 1.75 | 25.0 | 8.0 | 5 | 46.8 | 10.8 | 30.0 | 3.6 |
| SKCTM12A2 | 8.0 | 15.0 | M12 x 1.75 | 25.0 | 8.0 | 6 | 46.8 | 10.8 | 30.0 | 3.6 |
| SKCTM12A3 | 8.0 | 15.0 | M12 x 1.75 | 25.0 | 8.0 | 8 | 46.8 | 10.8 | 30.0 | 3.6 |
| SKCTM12B1 | 8.0 | 15.0 | M12 x 1.5 | 25.0 | 8.0 | 5 | 46.8 | 10.8 | 30.0 | 3.6 |
| SKCTM12B2 | 8.0 | 15.0 | M12 x 1.5 | 25.0 | 8.0 | 6 | 46.8 | 10.8 | 30.0 | 3.6 |
| SKCTM12B3 | 8.0 | 15.0 | M12 x 1.5 | 25.0 | 8.0 | 8 | 46.8 | 10.8 | 30.0 | 3.6 |
| SKCTM16A1 | 15.0 | 35.0 | M16 x 2.0 | 32.0 | 10.0 | 6 | 60.4 | 14.4 | 40.0 | 4.8 |
| SKCTM16A2 | 15.0 | 35.0 | M16 x 2.0 | 32.0 | 10.0 | 8 | 60.4 | 14.4 | 40.0 | 4.8 |
| SKCTM16A3 | 15.0 | 35.0 | M16 x 2.0 | 32.0 | 10.0 | 10 | 60.4 | 14.4 | 40.0 | 4.8 |
| SKCTM16B1 | 15.0 | 35.0 | M16 x 1.5 | 32.0 | 10.0 | 6 | 60.4 | 14.4 | 40.0 | 4.8 |
| SKCTM16B2 | 15.0 | 35.0 | M16 x 1.5 | 32.0 | 10.0 | 8 | 60.4 | 14.4 | 40.0 | 4.8 |
| SKCTM16B3 | 15.0 | 35.0 | M16 x 1.5 | 32.0 | 10.0 | 10 | 60.4 | 14.4 | 40.0 | 4.8 |
| SKCTM20A1 | 20.0 | 60.0 | M20 x 2.5 | 35.0 | 12.0 | 8 | 70.0 | 18.0 | 50.0 | 6.0 |
| SKCTM20A2 | 20.0 | 60.0 | M20 x 2.5 | 35.0 | 12.0 | 10 | 70.0 | 18.0 | 50.0 | 6.0 |
| SKCTM20A3 | 20.0 | 60.0 | M20 x 2.5 | 35.0 | 12.0 | 12 | 70.0 | 18.0 | 50.0 | 6.0 |
| SKCTM20B1 | 20.0 | 60.0 | M20 x 1.5 | 35.0 | 12.0 | 8 | 70.0 | 18.0 | 50.0 | 6.0 |
| SKCTM20B2 | 20.0 | 60.0 | M20 x 1.5 | 35.0 | 12.0 | 10 | 70.0 | 18.0 | 50.0 | 6.0 |
| SKCTM20B3 | 20.0 | 60.0 | M20 x 1.5 | 35.0 | 12.0 | 12 | 70.0 | 18.0 | 50.0 | 6.0 |
