品牌名称：
MCMASTER-CARR
商品型号：3850K2
产地：usa
单位：pcs
| Measures | Pressure |
| For Use With | Air, Hydraulic Fluid, Water |
| Display Type | Dial |
| Dial Type | Liquid Filled |

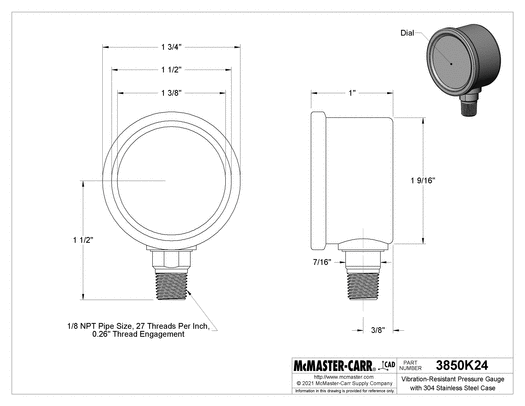

| Dial Diameter | 1 1/2" |
| Pipe Size | 1/8 |
| Scale Type | Dual |
| Scale | psi, kPa |
| Environment Temperature Range | 40° to 140° F |
| Process Temperature Range | Not Rated |
| Connection Type | Pipe |
| Pipe Connection Type | Threaded |
| Thread Type | NPT |
| Gender | Male |
| Case Material | 304 Stainless Steel |
| Connection Material | Brass |
| Lens Material | Polycarbonate Plastic |
| Accuracy | ±1% |
| Accuracy Scale | Mid Scale |
| Accuracy Grade | A |
| Liquid Type | Glycerin |
| Mounting Orientation | Upright |
| Connection Location | Bottom |
| Graduation Marks | |
| psi | 2 |
| kPa | 10 |
| Numeric Increments | |
| psi | 20 |
| kPa | 100 |
| Pressure Range | 0 to 680 kPa |
| Pressure Range | 0 to 100 psi |
| RoHS | Not Compliant |
| REACH | Not Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | Taiwan |
| Schedule B | 902620.0000 |
| ECCN | EAR99 |
