品牌名称：
MCMASTER-CARR

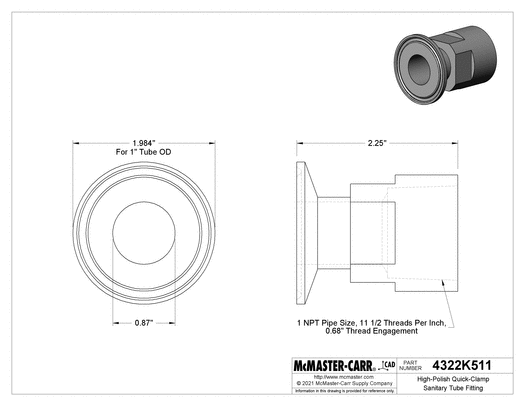

商品型号：4322K511
产地：usa
单位：pcs
| Shape | Straight |
| Type | Adapter |
| Tube Connection | |
| Connection Style | Quick Clamp |
| Quick-Clamp Connection Type | Standard |
| For Tube OD | 1" |
| Flange OD | 1.984" |
| Pipe Connection | |
| Connection Style | Threaded |
| Gender | Female |
| Thread Type | NPT |
| Pipe Size | 1 |
| For Use With | Air, Water |
| Material | 304 Stainless Steel |
| Maximum Vacuum | Not Rated |
| Length | 2 1/4" |
| Appearance | Polished |
| Interior Smoothness | 25 to 32 Ra |
| Exterior Smoothness | 35 Ra |
| Sterilize With | Steam (Autoclaving) |
| For Tube Material | 304/304L Stainless Steel, 316/316L Stainless Steel |
| For Tube Specifications Met | ASTM A269, ASTM A270 |
| For Tube Fabrication | Welded |
| Environment | Sanitary |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (07/08/2021, 219 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | Taiwan |
| Schedule B | 730729.0000 |
| ECCN | 2B999 |
这些接头内部的光滑表面使其易于清除产品的残留物。也被称为无菌和三夹子接头，它们与一个垫片、一个夹子和另一个快速夹子接头连接，以一种快速和简单的方式进入你的管路。接头的压力等级将根据你选择的夹子而变化，温度等级将根据你选择的垫圈材料而变化。
